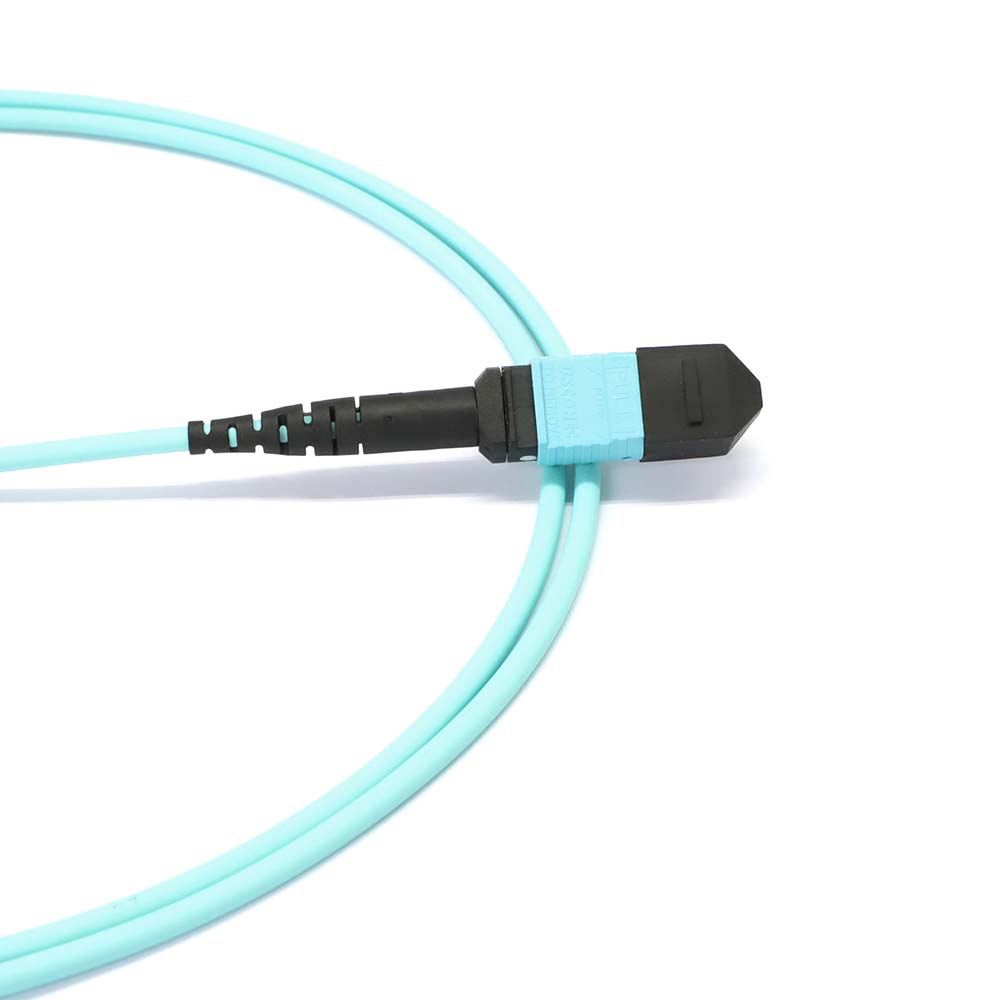

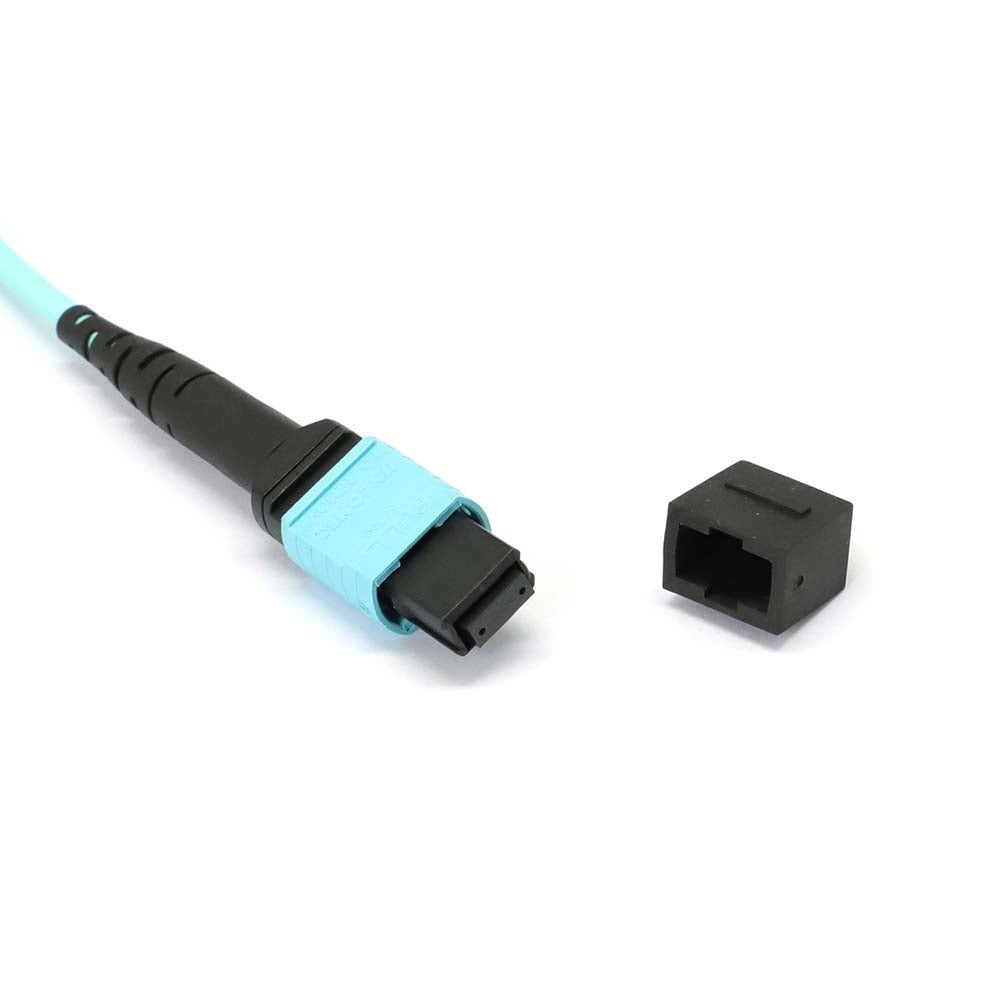

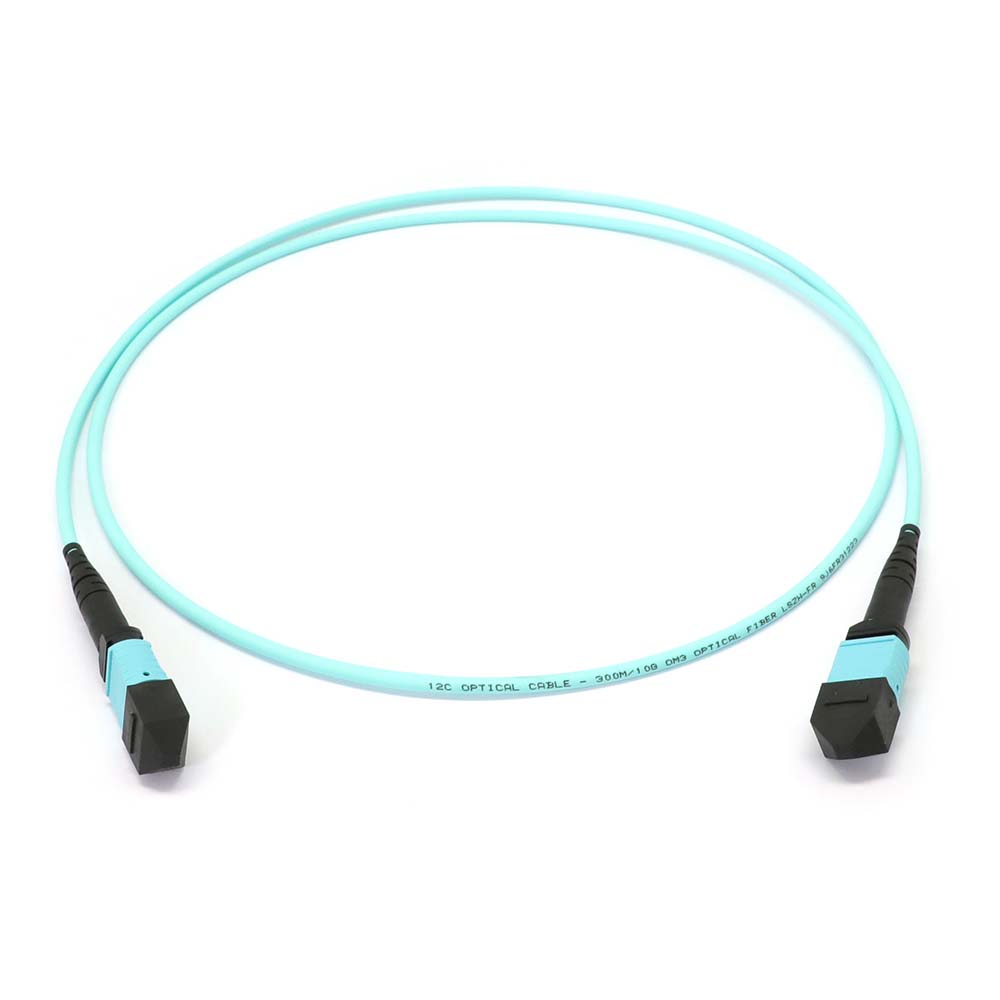

MTP to MTP (Low Loss) Female 12 Fibers OS2 OFNP Singlemode Trunk Cable

In stock - 20 items available
Cart Image PN: ZMTFFIEADBD0102
Cart Image Inventory quantity: 20
  • Low loss design for long-distance data transmission
  • 12-fiber cable ideal for high-density setups
  • Durable OFNP-rated jacket, meeting fire safety standards
  • Available Options: 1m, 2m, 3m, 5m, 10m / Customized
  • Contact us for more info

ZMTFFIEADBD0102

20

Unit Price:
Regular price $3,948.00 TWD
Total Price:
$3,948.00

Lead time: 2-3 workdays for In-Stock items

Technical Spec

Special Orders

  • Delivery time 4-8 weeks for Special Orders

Product Description

MTP to MTP (Low Loss) Female 12 Fibers OS2 OFNP Singlemode Trunk Cable

The MTP to MTP (Low Loss) Female 12 Fibers OS2 OFNP Singlemode Trunk Cable provides superior performance with low insertion loss and high return loss, ideal for long-distance data transmission in high-density environments. The 12-fiber cable with OFNP-rated PVC jacket ensures durability and meets fire safety standards, while supporting a wavelength range of 850nm to 1300nm. Perfect for mission-critical installations.


In Stock: 10m
Available Options: 1m, 2m, 3m, 5m, 10m / Customized
(The actual product received shall prevail.)

FEATURES

Connector A MTP Female Connector B MTP Female
Fiber Type SM(G657A1) 9/125um Polish Type APC to APC
Fiber Count 12 Fibers Jacket Material PVC OFNP
Return Loss >=25dB Insertion Loss <=0.35dB
Wavelength 850/1300nm Storage Temperature -40 degree Celsius ~ 80 degree Celsius
Operating temperature -10 degree Celsius ~ 70 degree Celsius Installation Tensile Load 66N
Long-Term Tensile Load 50N Jacket OD 3.0mm
