MTP to MTP Female 12 Fibers OM4 OFNP Multimode Trunk Cable
PN: ZMTEFLEAABA0022
Inventory quantity: 80
ZMTEFLEAABA0022
80
Lead time:
Lead time:
Product Description

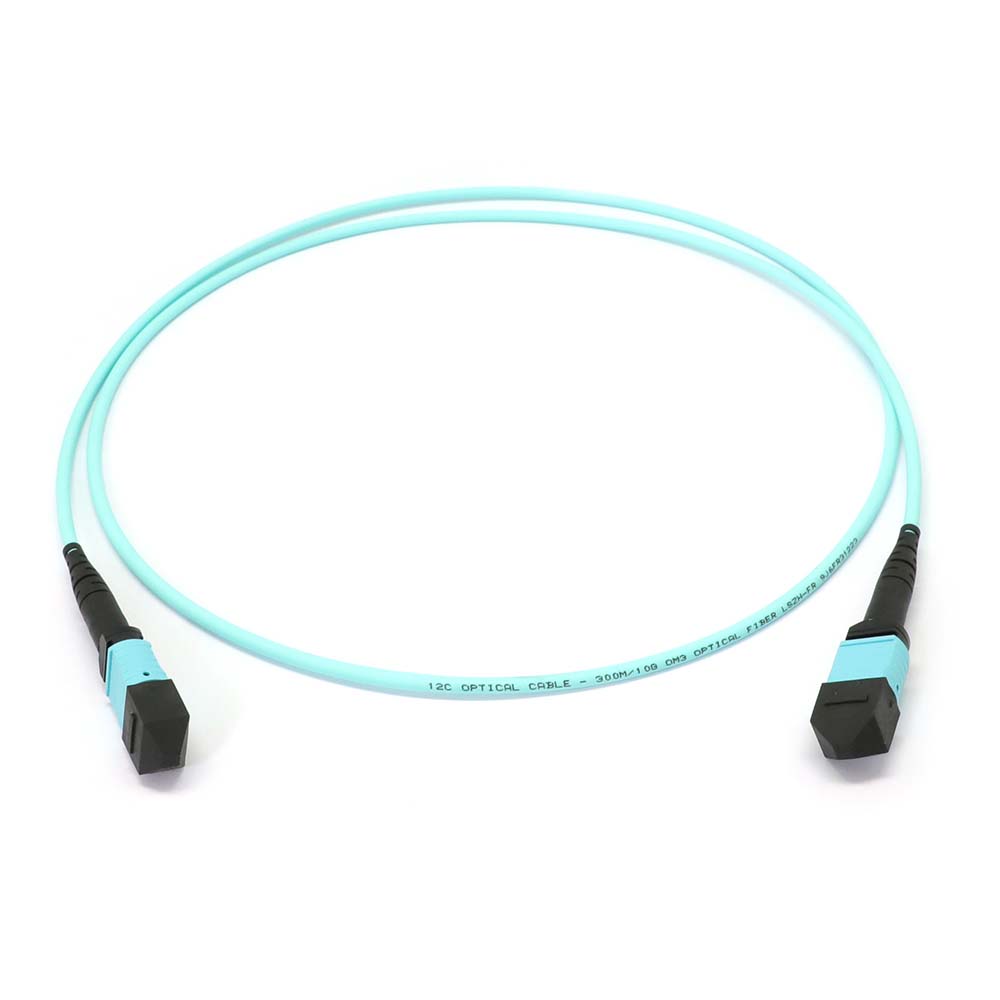

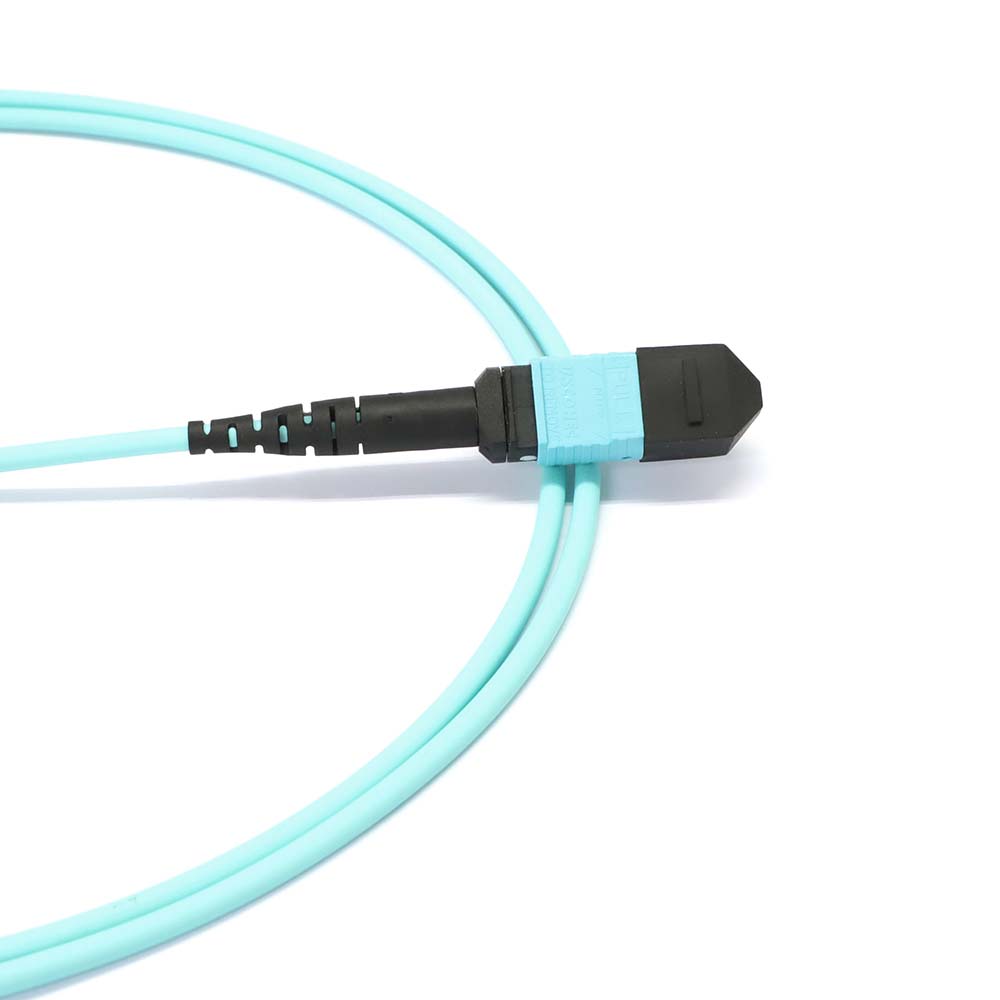

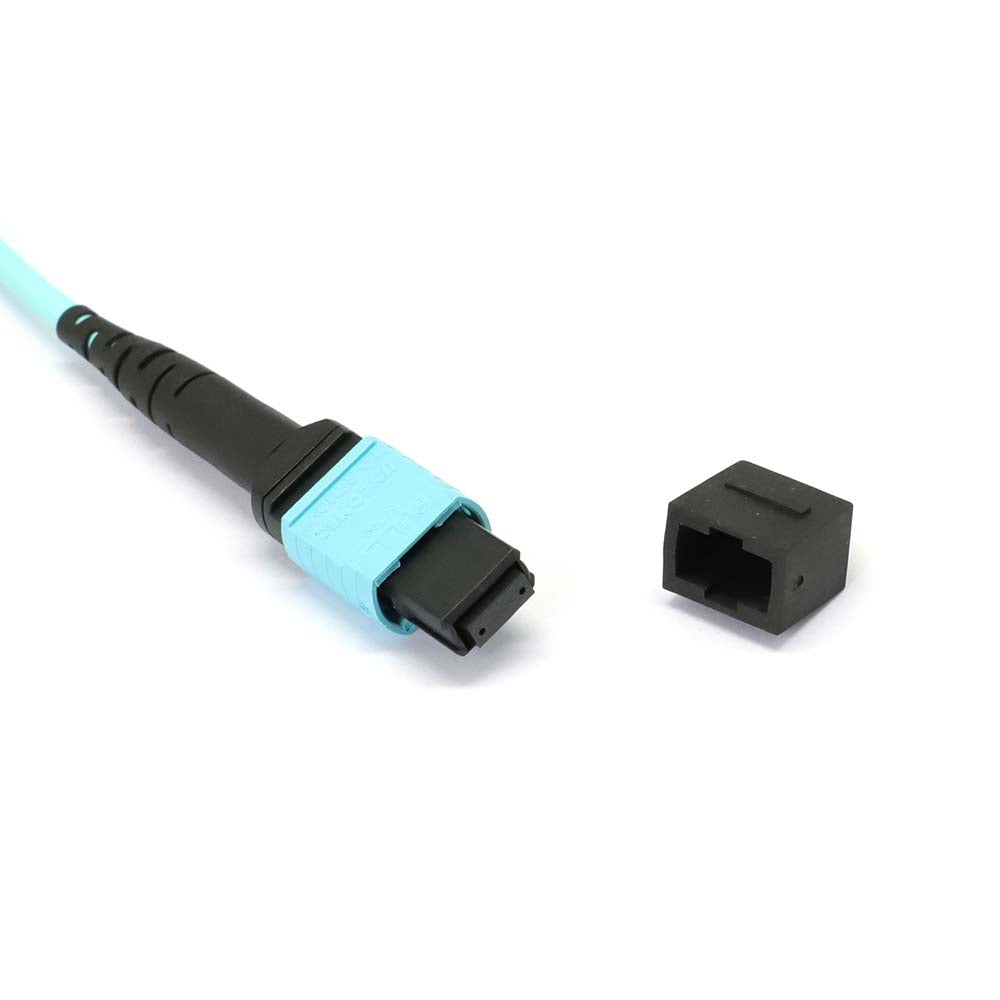

MTP to MTP Female 12 Fibers OM4 OFNP Multimode Trunk Cable
The MTP to MTP Female OM4 Multimode Trunk Cable is designed for high-density data centers and enterprise networks. This 12-fiber cable delivers excellent performance with low insertion loss and high return loss, ensuring reliable data transmission over long distances. With a 3.0mm OFNP-rated jacket, it supports 850/1300nm wavelengths and is ideal for large-scale installations.
Available Options:1m, 2m, 3m, 5m, 10m, 15m, 25m, 50m / Customized
(The actual product received shall prevail.)
FEATURES
| Connector A | MTP Female | Connector B | MTP Female |
| Fiber Type | OM4 50/125um | Polish Type | UPC to UPC |
| Fiber Count | 12 Fibers | Jacket Material | PVC OFNP |
| Return Loss | >=20dB | Insertion Loss | <=0.50dB |
| Wavelength | 850/1300nm | Storage Temperature | -40 degree Celsius ~ 80 degree Celsius |
| Operating temperature | -10 degree Celsius ~ 70 degree Celsius | Installation Tensile Load | 66N |
| Long-Term Tensile Load | 50N | Jacket OD | 3.0mm |
