MTP to MTP Female 12 Fibers OM3 OFNP Multimode Trunk Cable
MTP to MTP Female 12 Fibers OM3 OFNP Multimode Trunk Cable
MTP to MTP Female 12 Fibers OM3 OFNP Multimode Trunk Cable
MTP to MTP Female 12 Fibers OM3 OFNP Multimode Trunk Cable
MTP to MTP Female 12 Fibers OM3 OFNP Multimode Trunk Cable
MTP to MTP Female 12 Fibers OM3 OFNP Multimode Trunk Cable

MTP to MTP Female 12 Fibers OM3 OFNP Multimode Trunk Cable

In stock - 20 items available
Cart Image PN: ZMTDFLEAABA0022
Cart Image Inventory quantity: 20
  • Supports high-density cabling and long-distance communication
  • Low insertion loss and high return loss for stable performance
  • OFNP-rated jacket compliant with fire safety standards
  • Available Options: 1m, 2m, 3m, 5m, 10m / Customized
  • Contact us for more info

ZMTDFLEAABA0022

20

Unit Price:
$2,106.00 TWD
Total Price:
$2,106.00

Lead time: 2-3 workdays for In-Stock items

Lead time: 台灣地點下單後6-8週內方可出貨，建議下單前可來信確認數量

Technical Spec

Special Orders

  • Delivery time 4-8 weeks for Special Orders
Description

Product Description

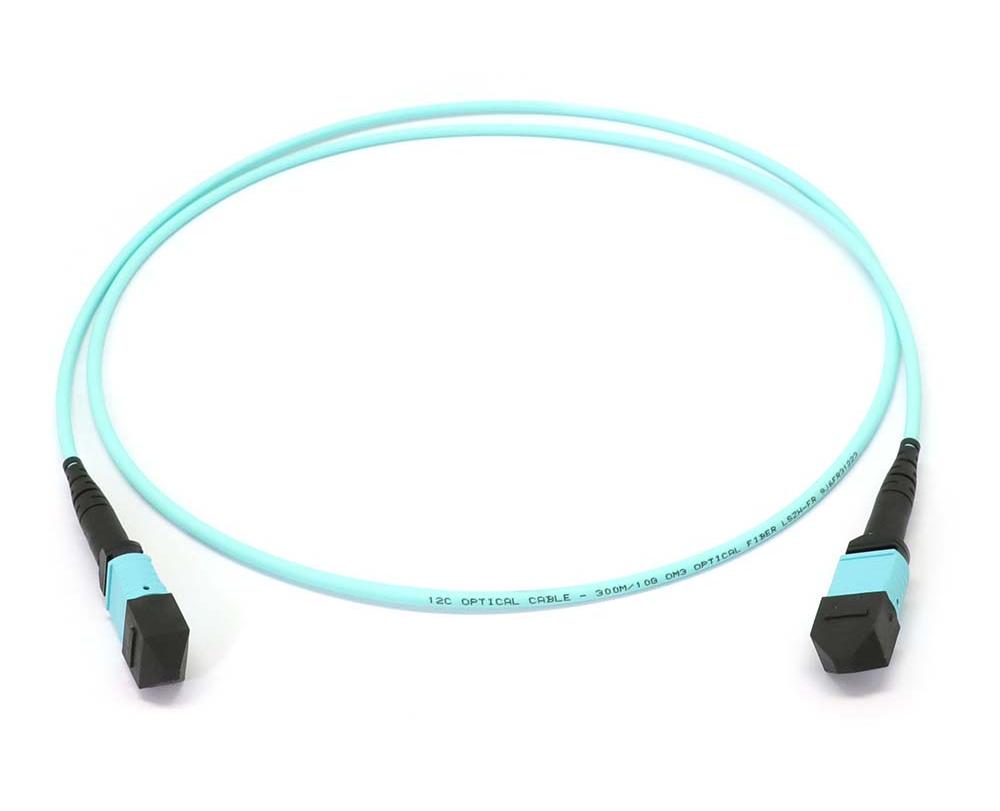

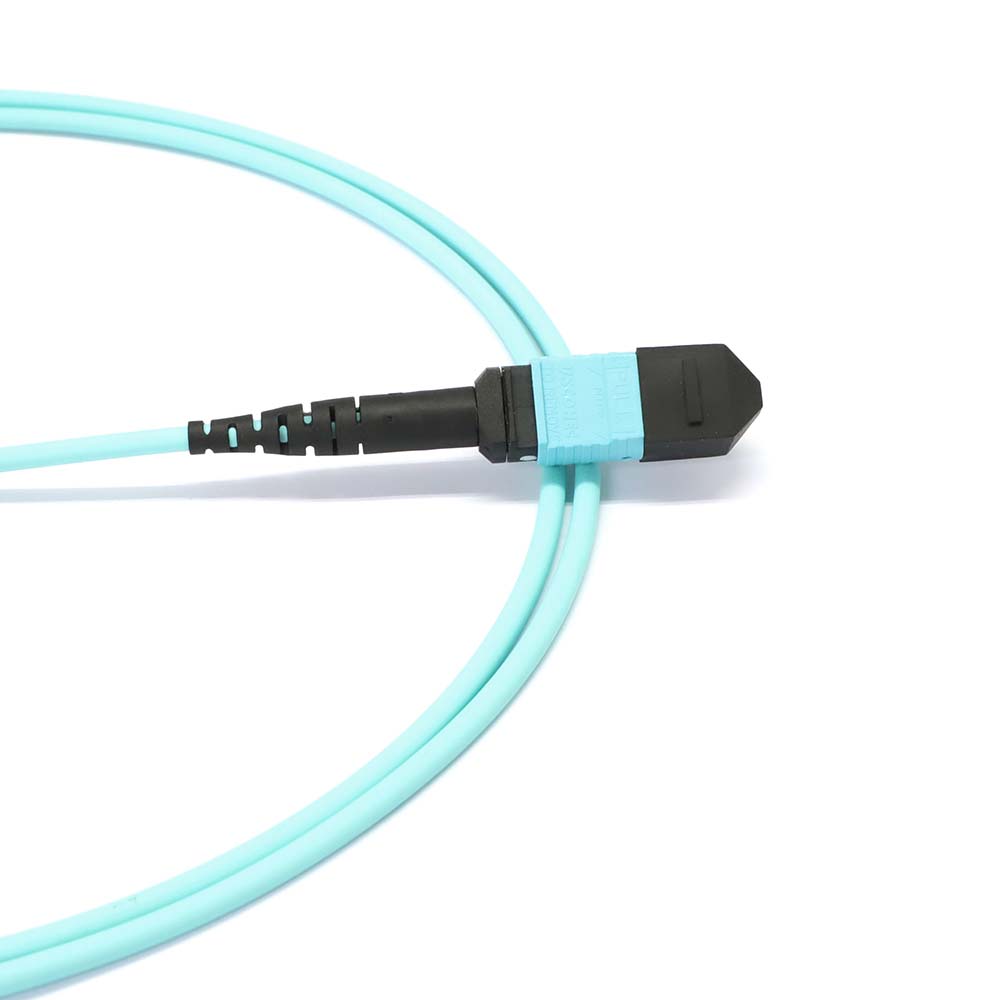

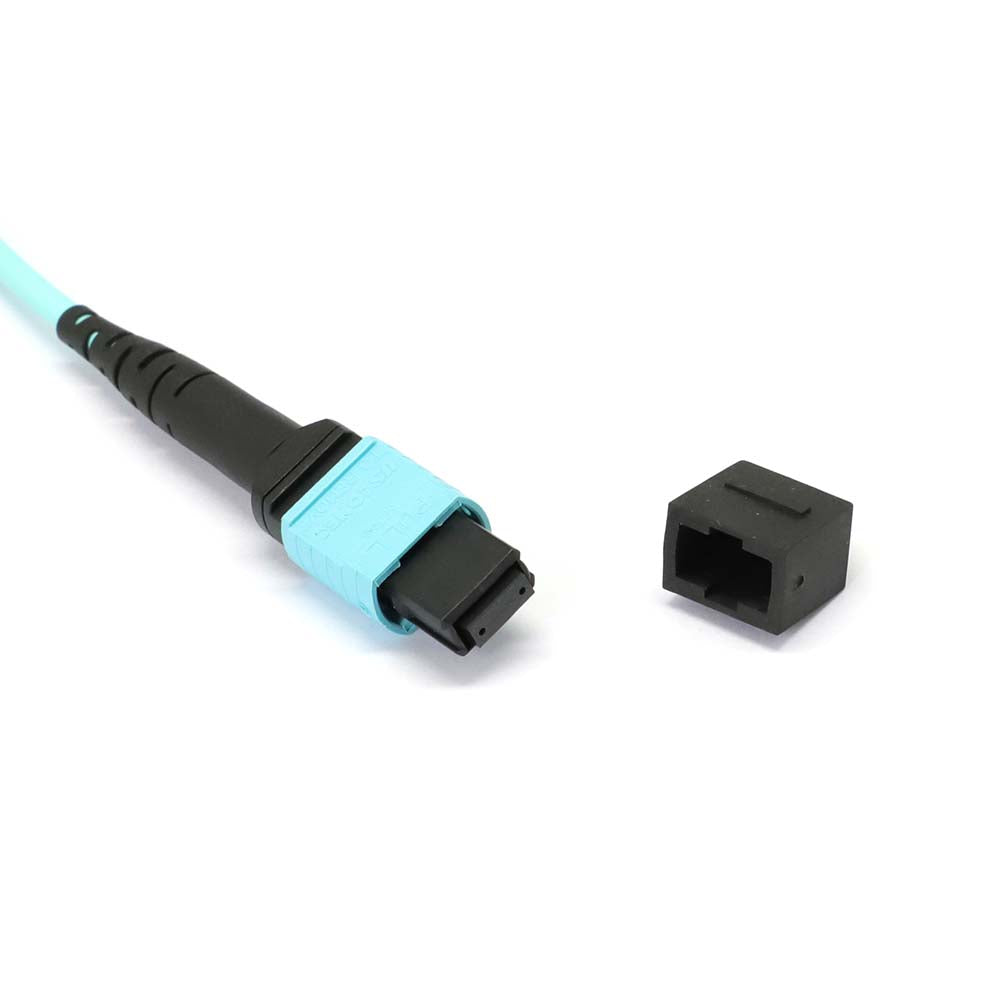

MTP to MTP Female 12 Fibers OM3 OFNP Multimode Trunk Cable

The MTP to MTP Female 12 Fibers OM3 OFNP Multimode Trunk Cable is designed for high-density data center environments, offering reliable data transmission with low insertion loss and high return loss. Its 12-fiber configuration supports long-distance communication, ideal for high-speed connections. The 3.0mm OFNP-rated jacket ensures durability and meets stringent fire safety requirements, making it suitable for demanding installations.

Available Options: 1m, 2m, 3m, 5m, 10m / Customized
(The actual product received shall prevail.)

FEATURES

Connector A MTP Female Connector B MTP Female
Fiber Type OM3 50/125um Polish Type UPC to UPC
Fiber Count 12 Fibers Jacket Material PVC OFNP
Return Loss >=20dB Insertion Loss <=0.50dB
Wavelength 850/1300nm Storage Temperature -40 degree Celsius ~ 80 degree Celsius
Operating temperature -10 degree Celsius ~ 70 degree Celsius Installation Tensile Load 66N
Long-Term Tensile Load 50N Jacket OD 3.0mm
