LC to SC Singlemode OS2 Duplex 9/125 OFNR Fiber Optic Patch Cable

In stock - 26 items available
Cart Image PN: ZFPFDIADDCE0012
Cart Image Inventory quantity: 26
  • Bend-insensitive fiber for high-density and long-distance transmission
  • Low insertion loss, high return loss for stable performance
  • Supports 1310nm and 1550nm wavelengths
  • Available Options: 1m - 40m / Customized
  • Contact us for more info

ZFPFDIADDCE0012

26

Unit Price:
Regular price $149.00 TWD
Total Price:
$149.00

Lead time: 2-3 workdays for In-Stock items

Technical Spec

Special Orders

  • Delivery time 4-8 weeks for Special Orders

Product Description

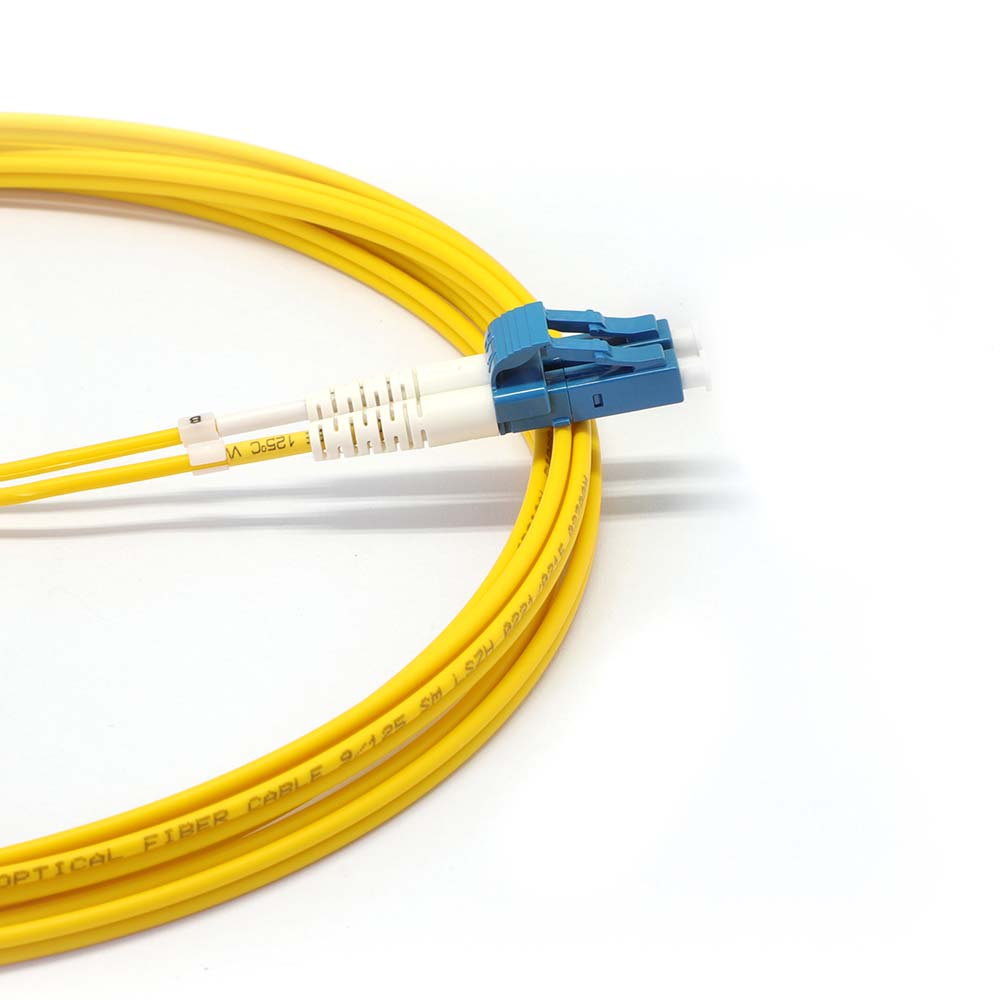

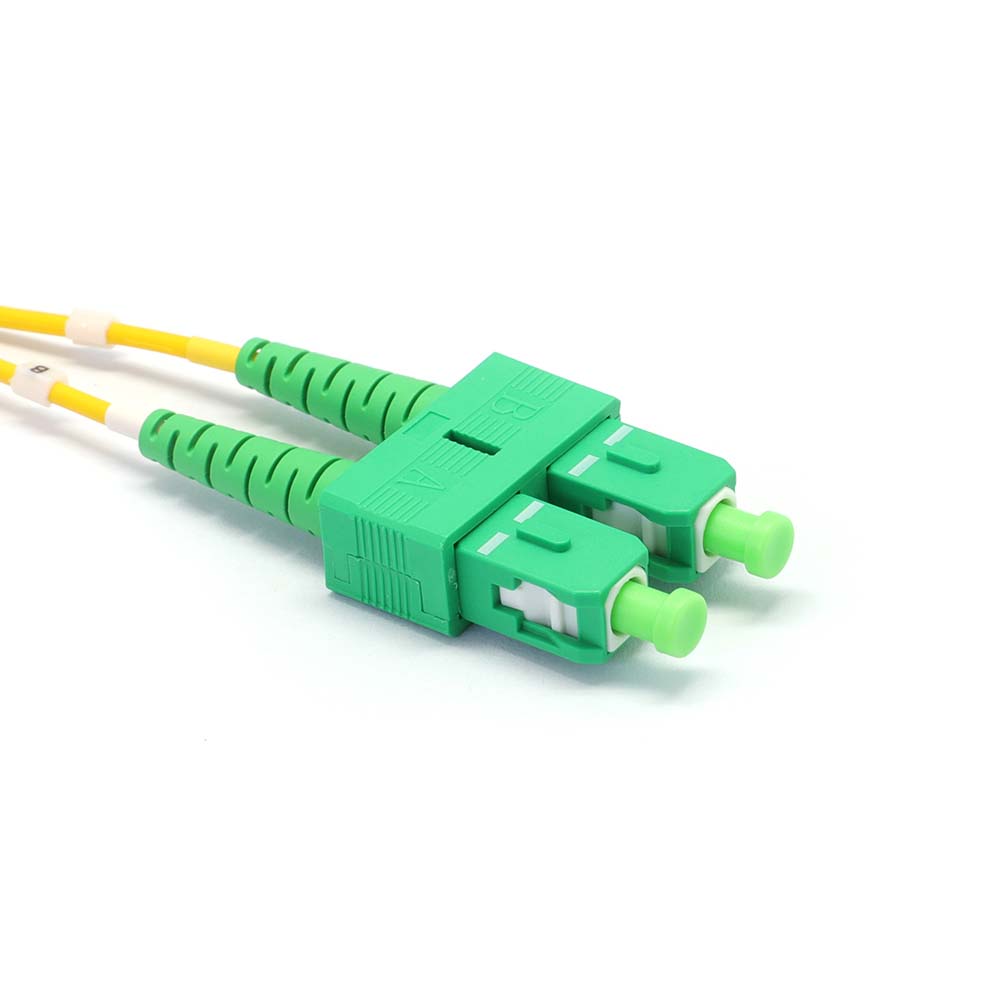

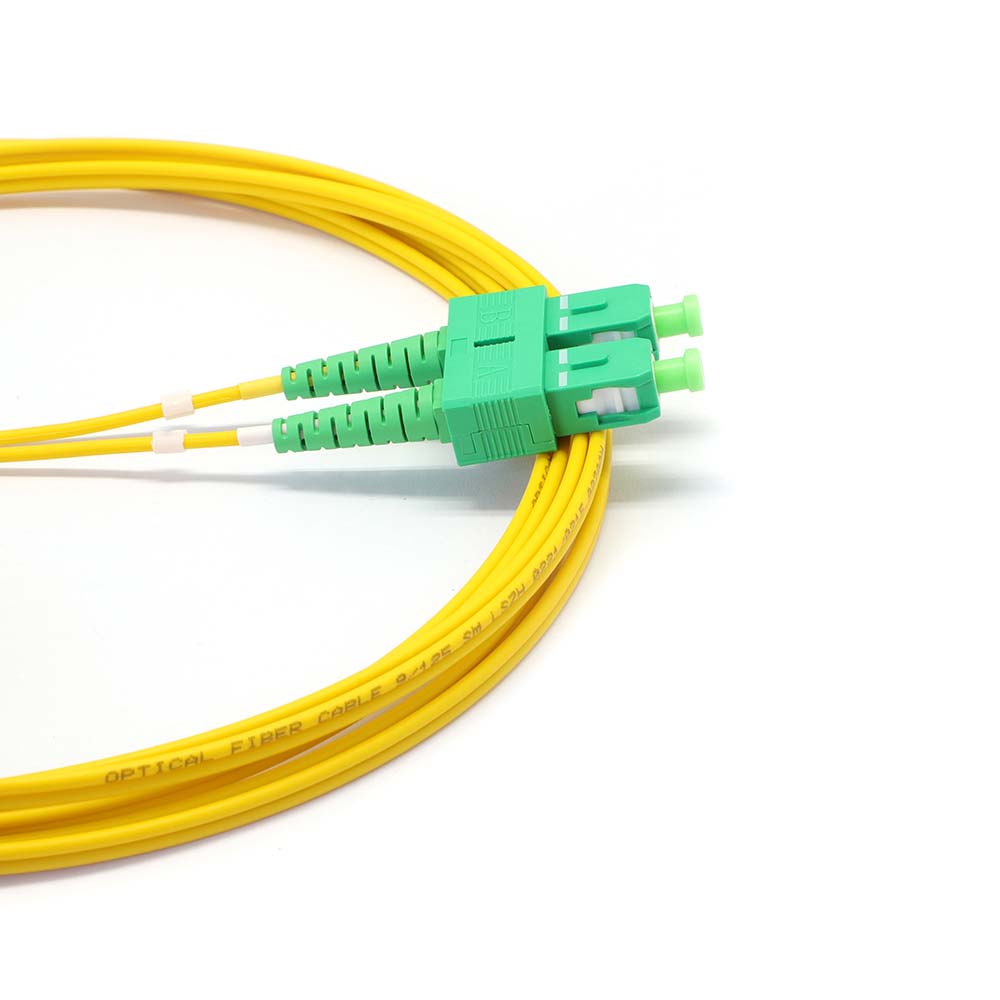

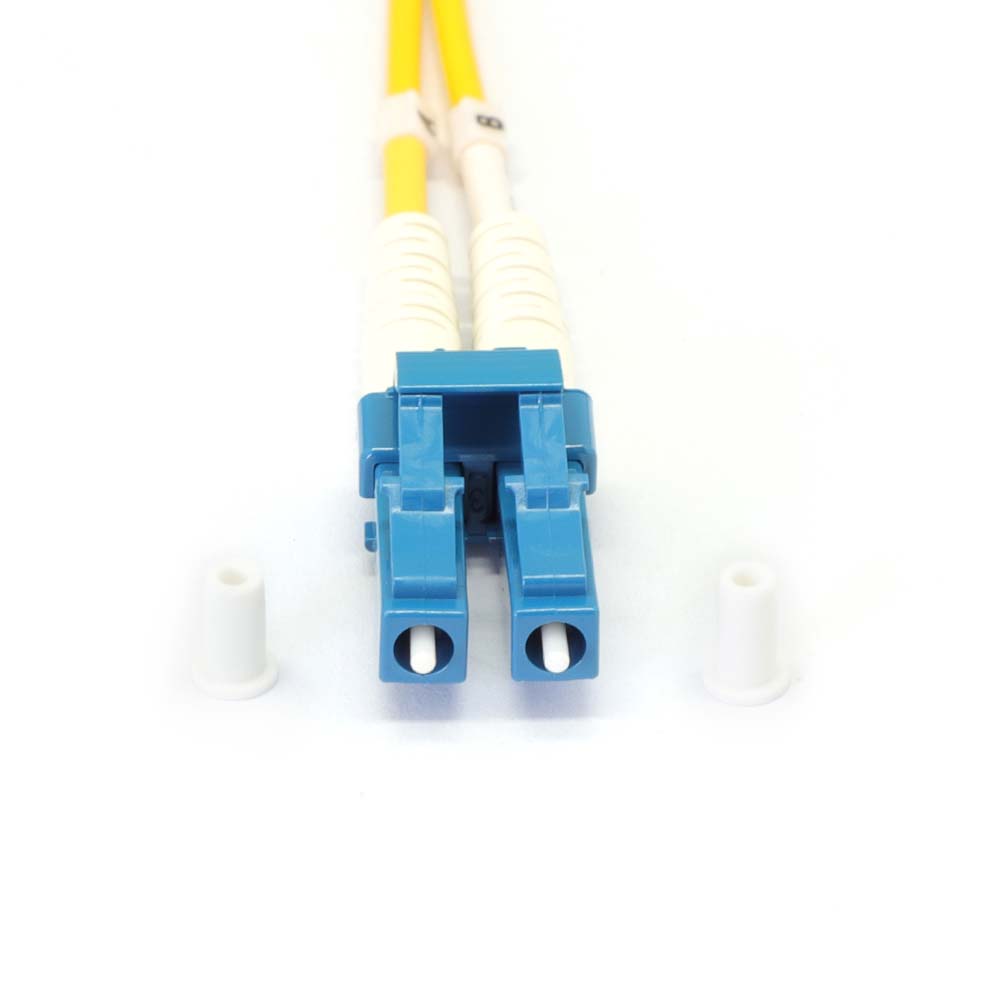

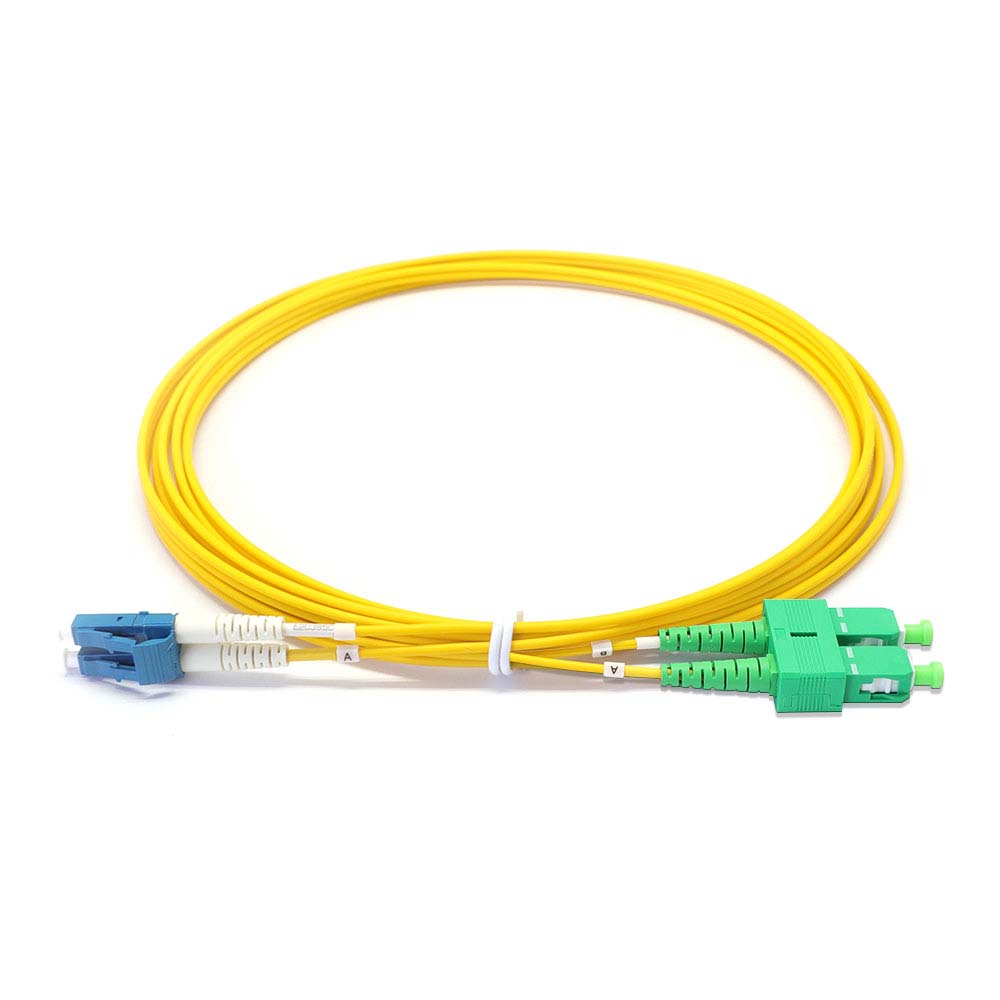

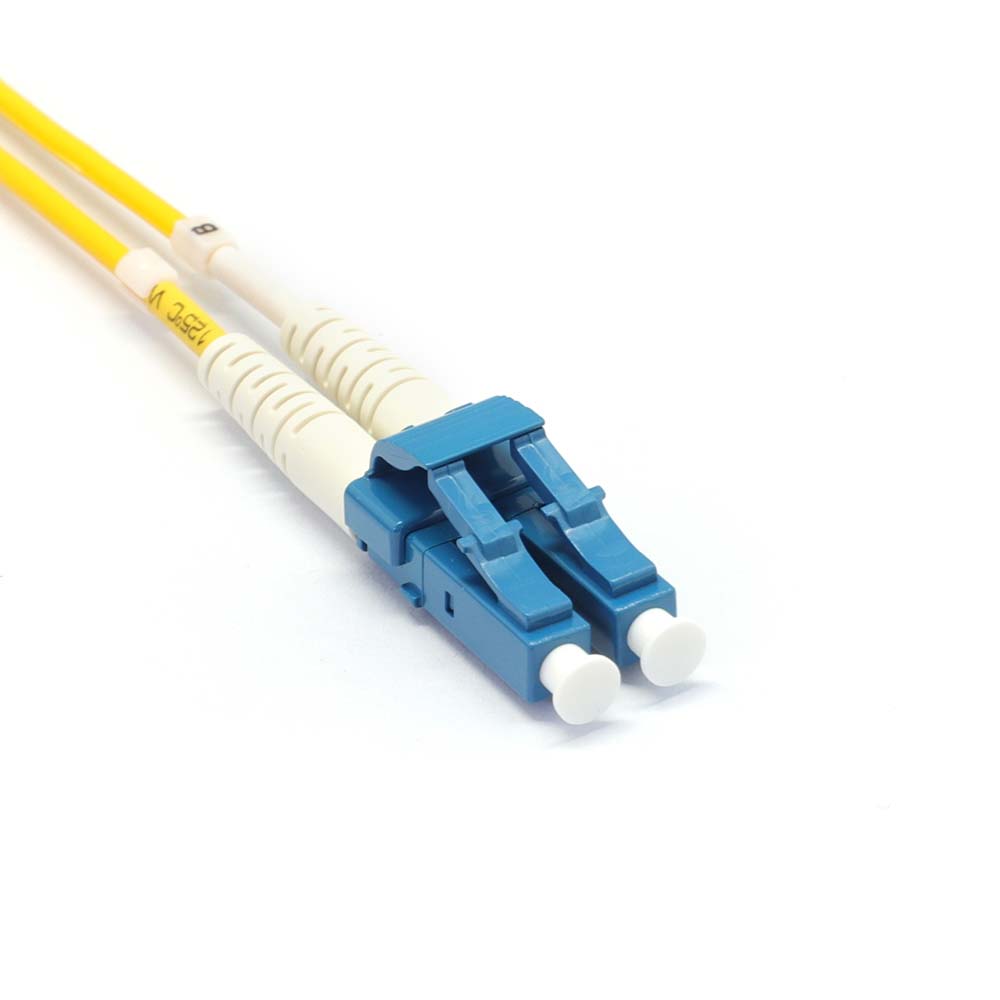

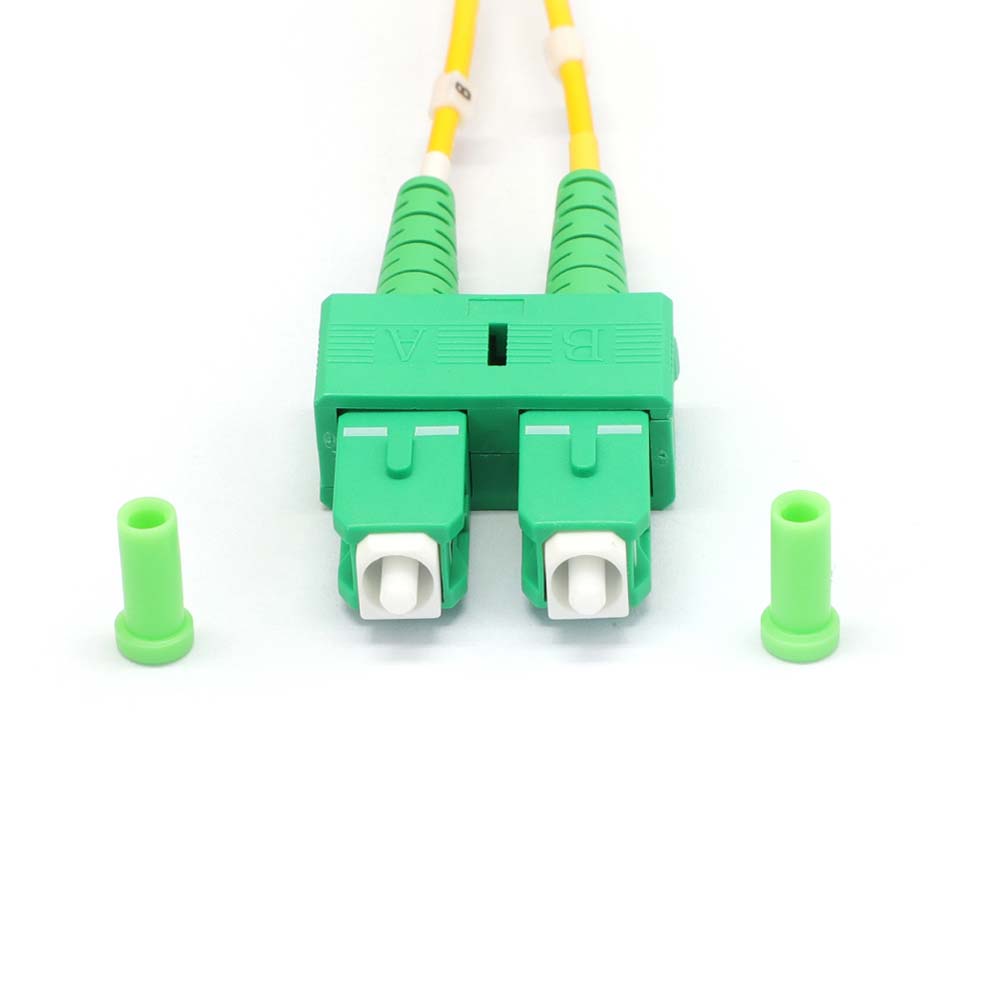

LC UPC to SC APC Duplex Singlemode OS2 2.0mm Zip-cord Fiber Optic Patch Cable PVC (OFNR)

The LC UPC to SC APC Singlemode OS2 Fiber Optic Patch Cable delivers superior low insertion loss and excellent return loss, ideal for long-distance and high-performance data transmission. Its bend-insensitive fiber ensures reliable performance, while the 2.0mm diameter PVC jacket offers flexibility and durability. This cable supports both 1310nm and 1550nm wavelengths, perfect for demanding network environments.

  • In Stock: 1m
  • Available Options: 1m - 40m / Customized
  • The actual product received shall prevail.

FEATURES

Connector Type LC to SC Polish Type UPC to APC
Fiber Count Duplex Cable Jacket PVC (OFNR)
Fiber Type SM G657A1 9/125um (OS2) Cable Diameter 2.0mm
Wavelength 1310/1550nm Fiber Grade Bend Insensitive
Insertion Loss(LC UPC) <=0.2dB Return Loss(LC UPC) >=55dB
Insertion Loss(SC APC) <=0.2dB Return Loss(SC APC) >=60dB
Operating temperature -20 degree Celsius ~ 70 degree Celsius Storage temperature -40 degree Celsius ~ 80 degree Celsius
