MTP to MTP Female 12芯 OM4 OFNP 多模主幹光纖線

有存貨 - 80件商品可用
Cart Image PN: ZMTEFLEAABA0022
Cart Image Inventory quantity: 80
  • 低插入損耗及高回波損耗，適合長距離傳輸
  • 支援 850/1300nm 波長，適用於高密度佈線
  • OFNP 防火外被，適合嚴苛環境
  • 可選長度: 1m, 2m, 3m, 5m, 10m, 15m, 25m, 50m / 批量可客製
  • 詳請聯絡我們

ZMTEFLEAABA0022

80

Unit Price:
$65.10 USD
Total Price:
$65.10

Lead time: 庫存商品需要 2-3 個工作天

Lead time: 台灣地點下單後6-8週內方可出貨，建議下單前可來信確認數量

Technical Spec

Special Orders

  • Delivery time 特殊訂單需要 4-8 週
Description

產品描述

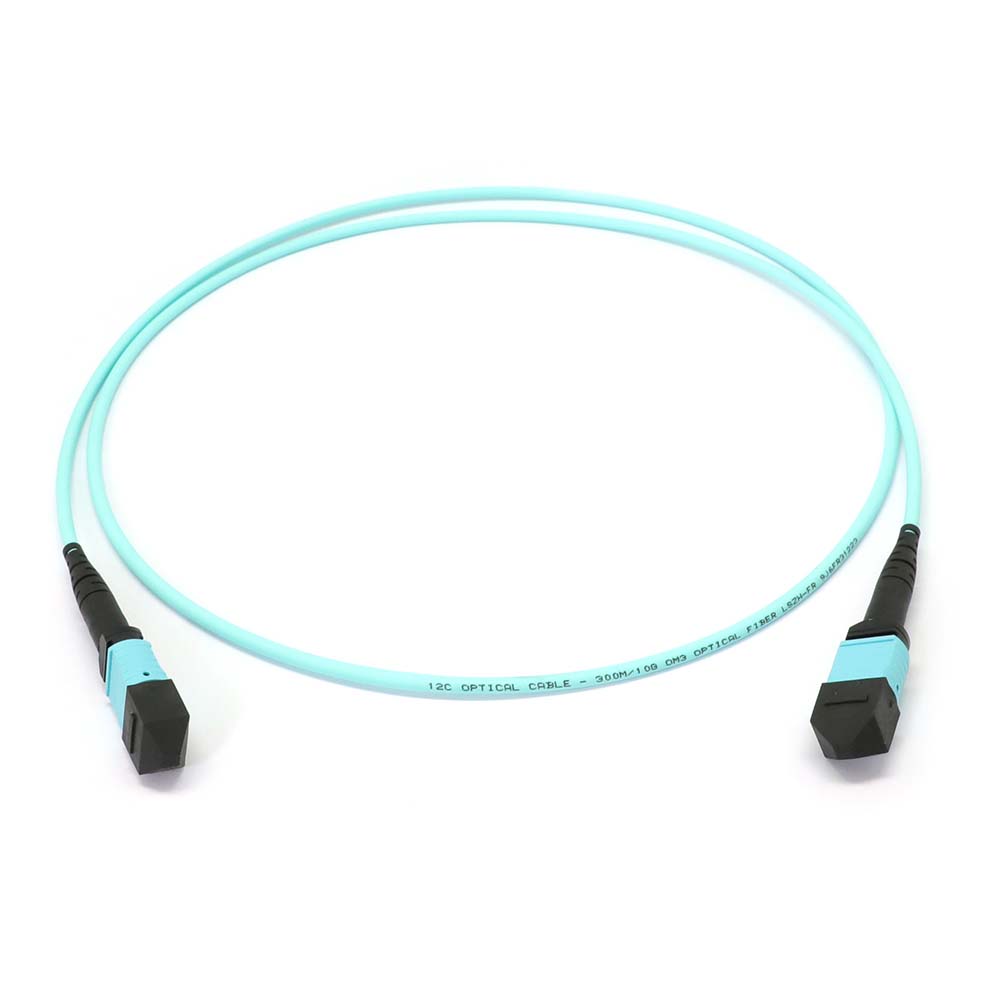

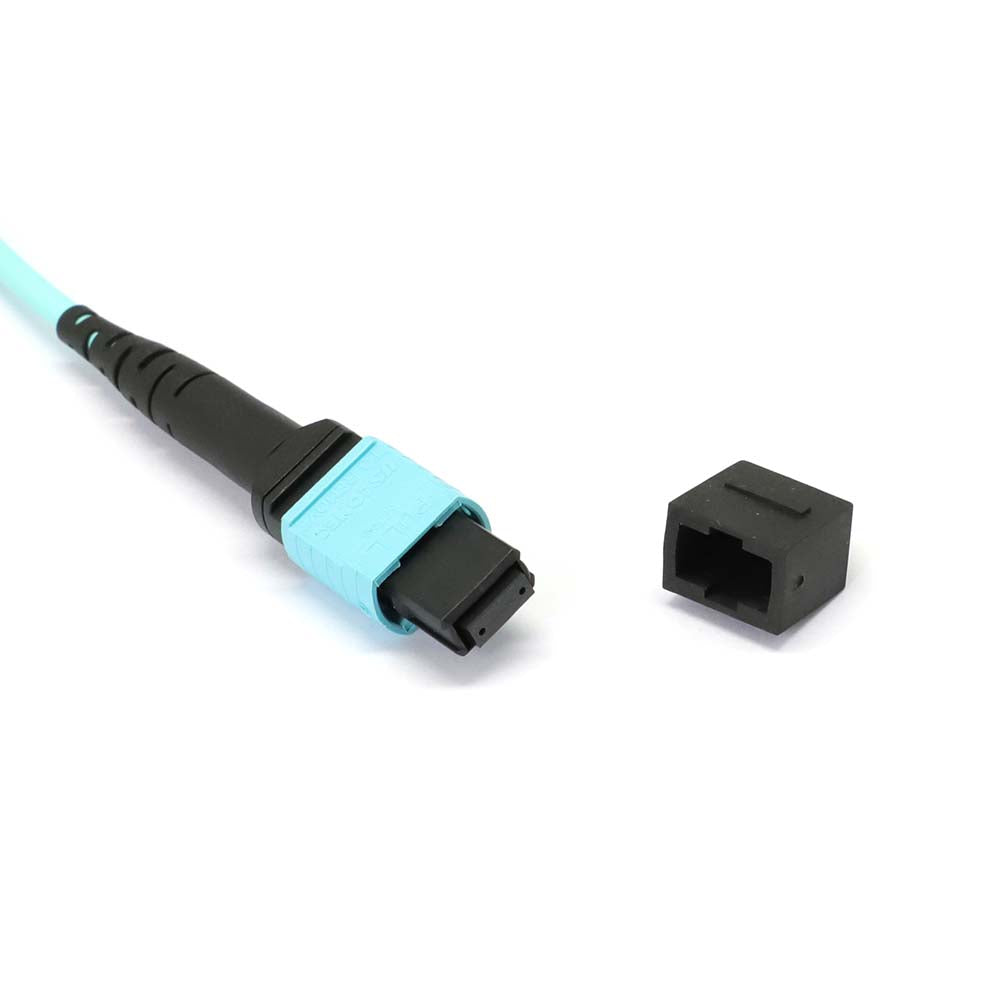

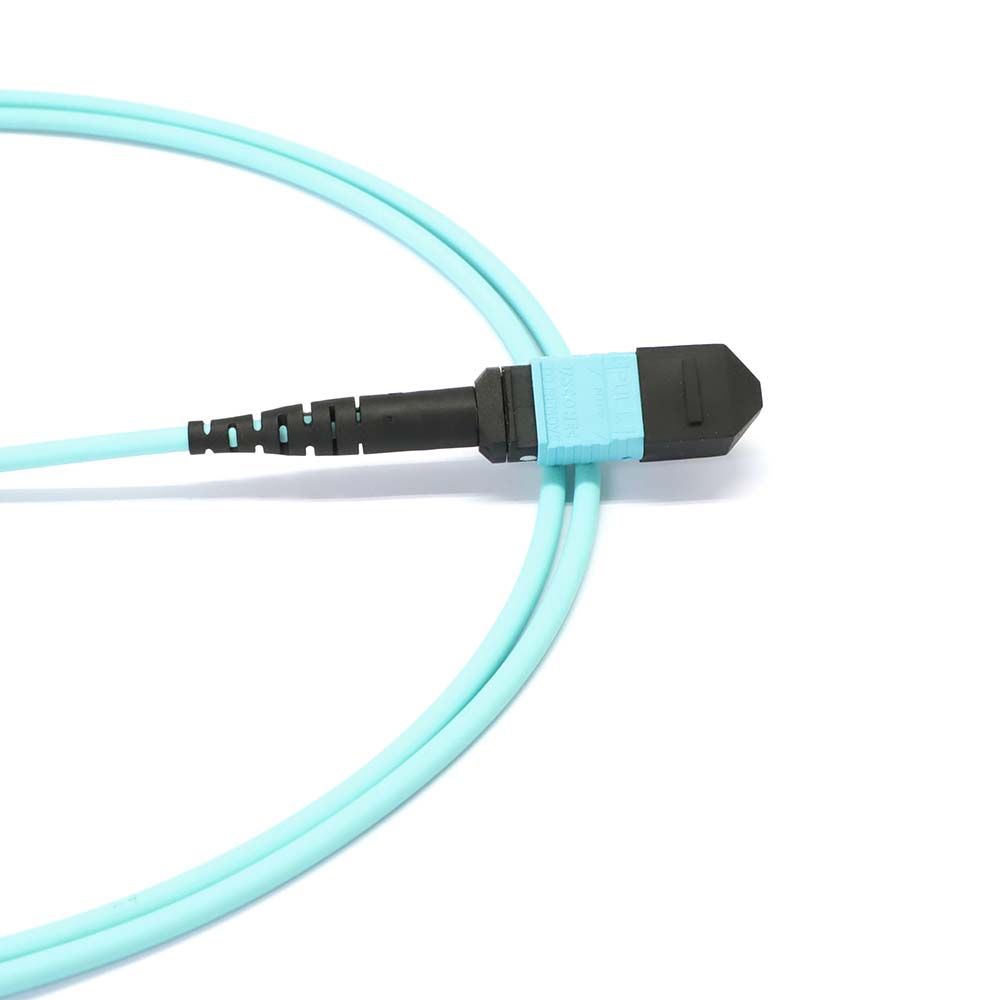

MTP to MTP Female 12 Fibers OM4 OFNP Multimode Trunk Cable

MTP to MTP Female OM4 多模主幹光纖線專為高密度資料中心及企業網絡設計。此12芯光纖線具備低插入損耗及高回波損耗，確保長距離傳輸的數據穩定性。3.0mm 的 OFNP 防火外被支援850/1300nm波長，非常適合大規模佈線。

可選長度: 1m, 2m, 3m, 5m, 10m, 15m, 25m, 50m / 批量可客製
(圖片僅供參考，產品以實物為準)

FEATURES

Connector A MTP Female Connector B MTP Female
Fiber Type OM4 50/125um Polish Type UPC to UPC
Fiber Count 12 Fibers Jacket Material PVC OFNP
Return Loss >=20dB Insertion Loss <=0.50dB
Wavelength 850/1300nm Storage Temperature -40 degree Celsius ~ 80 degree Celsius
Operating temperature -10 degree Celsius ~ 70 degree Celsius Installation Tensile Load 66N
Long-Term Tensile Load 50N Jacket OD 3.0mm
