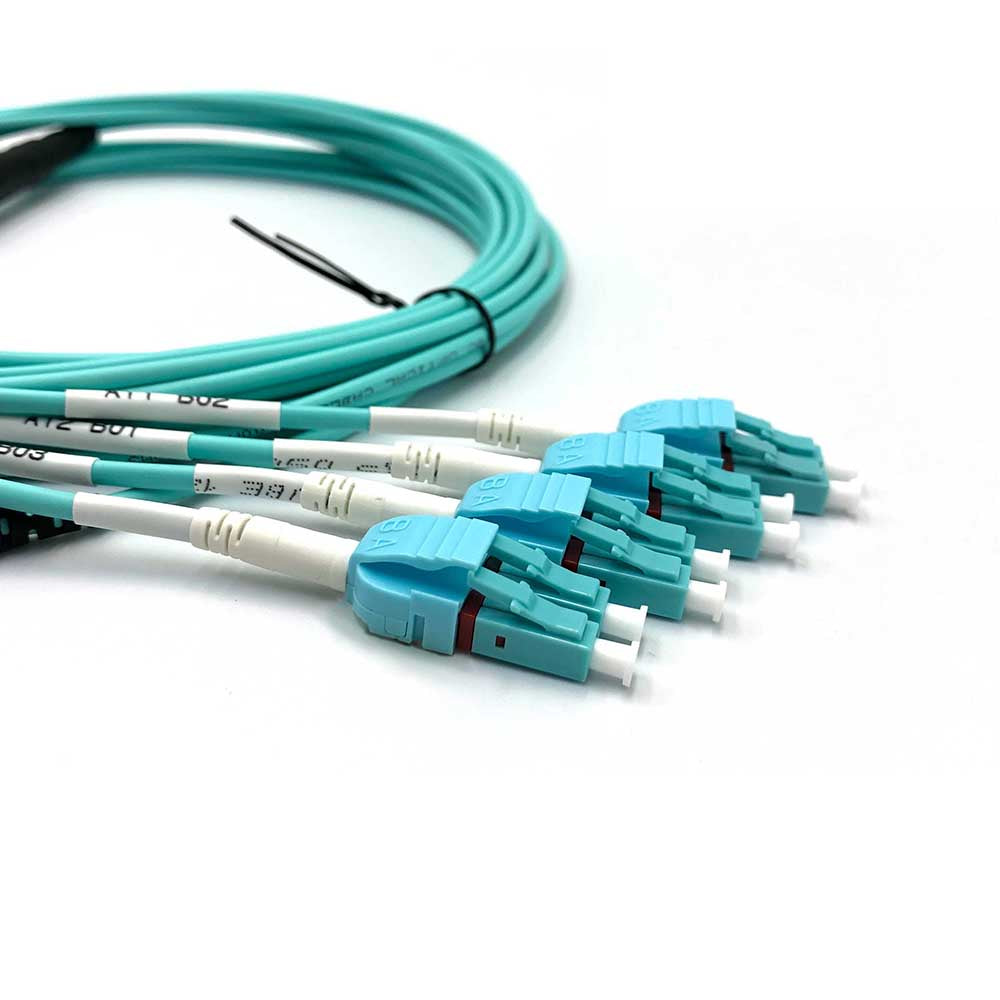

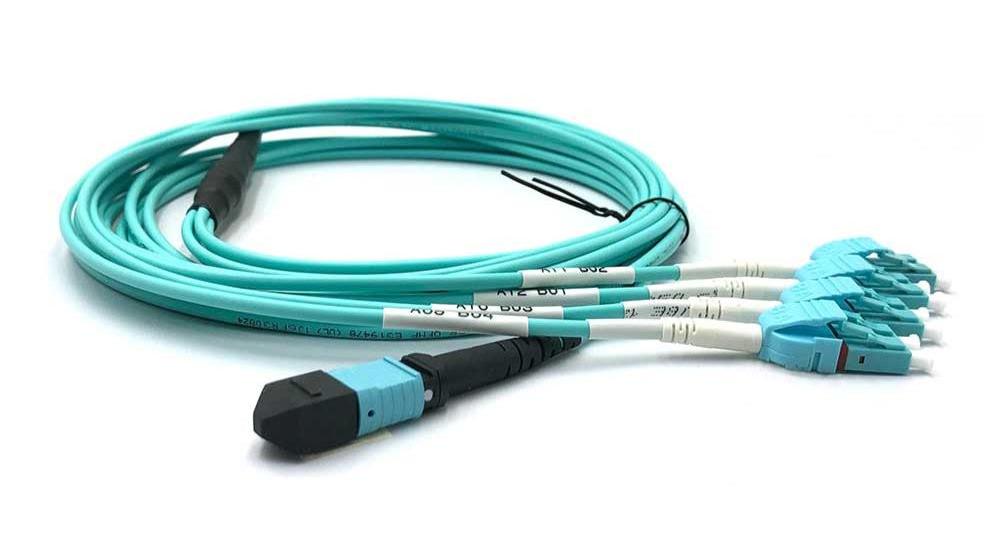

MTP Female to Uniboot LC 8芯 OM4 OFNP 多模主幹光纖跳線

有存貨 - 30件商品可用
Cart Image PN: ZBFECLEAADF0022
Cart Image Inventory quantity: 30
  • 低插入損耗,穩定傳輸高速數據
  • 抗彎曲設計,保證高密度環境中的最佳性能
  • Uniboot LC 連接器減少線纜體積,提升佈線管理效率
  • OFNP 外皮符合防火標準
  • 可選長度:1, 2, 3, 5, 10米 / 批量可客製
  • 詳請聯絡我們

ZBFECLEAADF0022

30

Unit Price:
原價 $50.60 USD
Total Price:
$50.60

Lead time: 庫存商品需要 2-3 個工作天

Lead time: 台灣地點下單後6-8週內方可出貨,建議下單前可來信確認數量

Technical Spec

Special Orders

  • Delivery time 特殊訂單需要 4-8 週

產品描述

MTP Female to Uniboot LC 8 Fibers OM4 OFNP Multimode Trunk Cable

MTP Female to Uniboot LC OM4 多模主幹光纖線專為高密度資料中心和企業網路設計,提供低插入損耗和優異的抗彎曲性能。此 8 芯光纖線適用於 40G 和 100G 乙太網高速應用。Uniboot LC 連接器設計減少線纜體積,改善氣流管理,適合空間有限的環境中進行高效佈線。

可選長度:1, 2, 3, 5, 10米。

(圖片僅供參考,產品以實物為準)

FEATURES

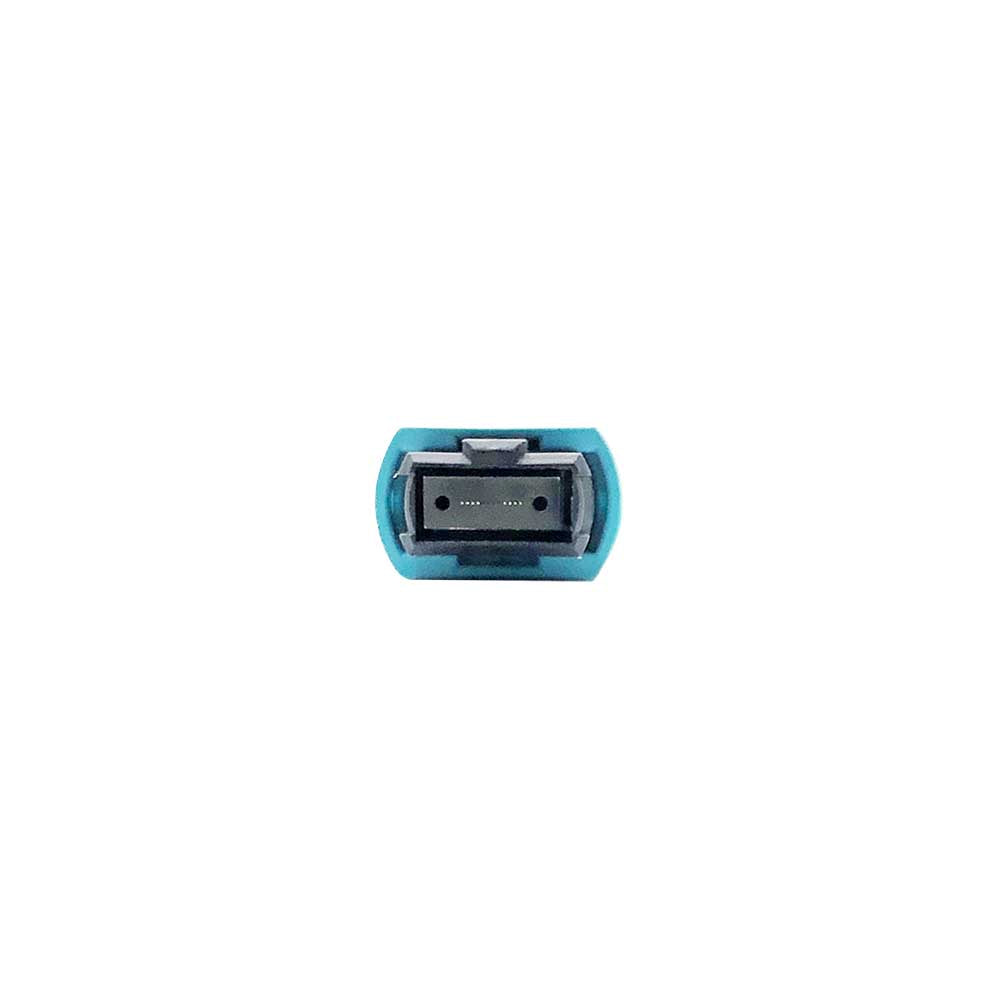

Connector A 12 F MTP (MM) Connector B LC w/ Clip (MM) Short Boot
Fiber Type OM4 50/125um Polish Type APC to UPC
Fiber Count 8 Fibers Jacket Material PVC OFNP
Return Loss >=20dB Insertion Loss <=0.50dB
Wavelength 850/1300nm Storage Temperature -40 degree Celsius ~ 80 degree Celsius
Operating temperature -10 degree Celsius ~ 70 degree Celsius Installation Tensile Load 66N
Long-Term Tensile Load 50N Jacket OD 3.0mm
